Magnetic Stirrer Hotplate
ABS casing is fire-retardant and resistant to weak acids and bases
Description

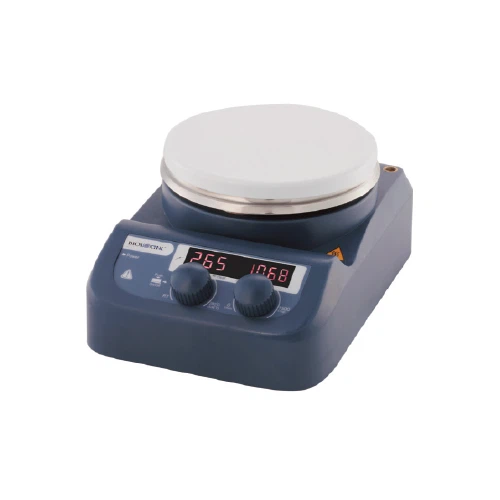

Magnetic Stirrer Hotplate
Characteristic
This combined magnetic stirrer and hotplate provides simultaneous stirring of up to 1500 rpm and heating of up to 280°C, making it ideal for the needs of most analytical and biological laboratories.
Features
• Digital control system
• Easy-to-read LED display
• Stirring speed range: 100-1500 rpm
• Temperature range: room temp. - 280°C
• Quick heating times
• ABS casing is fire-retardant and resistant to weak acids and bases
• Ceramic-coated stainless steel hotplate is chemically resistant and scratch-proof
• Safety feature: HOT caution indicator is displayed at 50°C and above
• Safety feature: heating automatically stops if hotplate temperature exceeds 320°C
Ordering Information
| Catalogue No. | Dimensions of hotplate [mm] | Hotplate material | Motor input rating |
Motor output rating |
Power | Voltage [VAC] |
| 01-310X | 135 | Motor type | 5W | 3W | 515W | 100-120/200-240 |
| Frequency [Hz] | Stirring positions | Max. stirring quantity [L, H2O] | Max. magnetic bar size [L, mm] |
Speed range [rpm] |
Heating output [W] |
Heating temperature range [°C] |
| 50/60 | 1 | 3 | 50 | 100-1500 | 500 |
Room temp.-280, increment 1 |
|
Control accuracy of work plate [°C] |
Auto-shutoff temperature |
Temperature display | HOT caution warning |
Dimension [W x D x H, mm] |
Weight [kg] |
Permissible ambient temperature |
|
±1%<100°C ±1%>100°C |
320°C | ±1 | 50°C | 150 × 260 × 80 | 1.8 | 5-40°C |
